This page contains views of both the original Storm Shadow concept and the improved "final" concept, as submitted to the AIAA Competition.

Click on the images for a larger view.

External Configuration:

Isometric view of original design Top view of original design
Side view of original design Front view of original design
Original Design

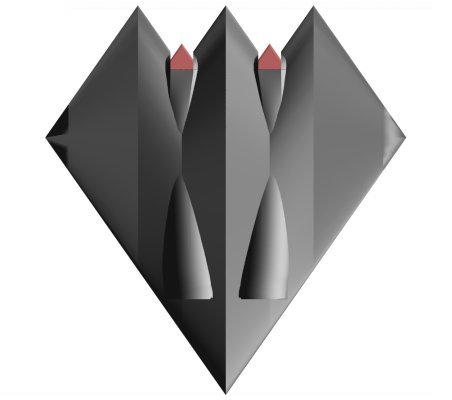

 		Top view of final design Isometric view of final design
Front view of final design Side view of final design
Final Design

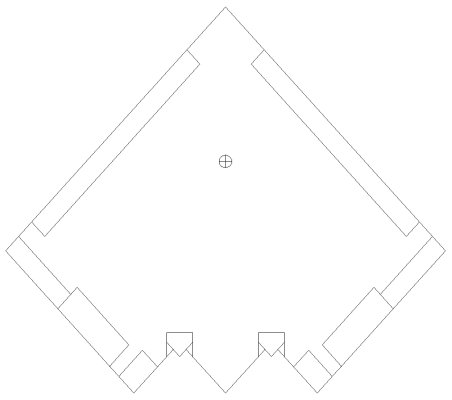

Original planform
Original Planform and Control
Surface Arrangment
 		Final planform
Final Planform and Control
Surface Arrangment

Internal Configuration:

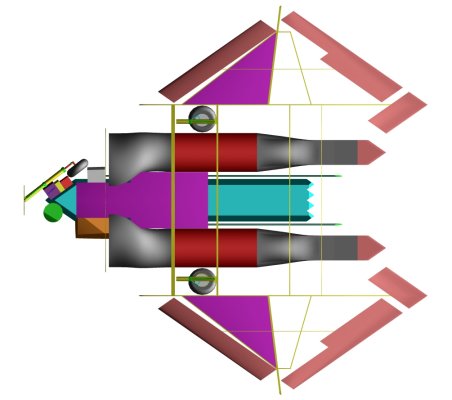

Internal configuration of original design Top view of final design

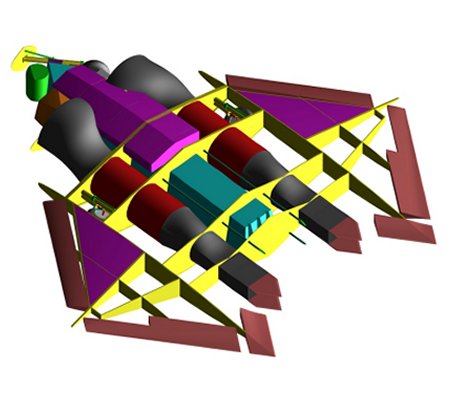

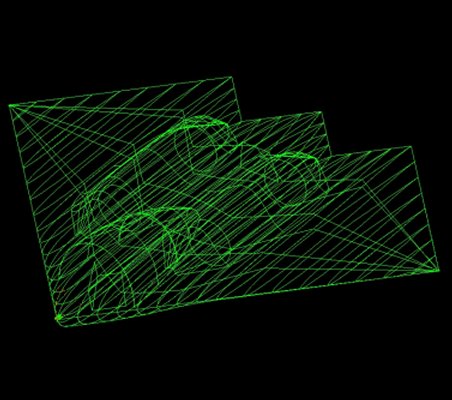

Internal configuration of original design Isometric view of final design
Isometric view of final design
Internal Views of the
Original Configuration
Internal Views of the
Final Configuration
