X-15 (45k) Comparison of different X-15 versions
X-15 (39k) Conceptual drawing of a X-15 derivative with delta wings to achieve speeds up to Mach 8
X-15 (33k) Another delta wing concept with different endplates at the wingtips
X-15 (46k) Conceptual design merging a "Supercharged Ejector RamJet" (SERJ) engine fed by a large ventral inlet onto the X-15

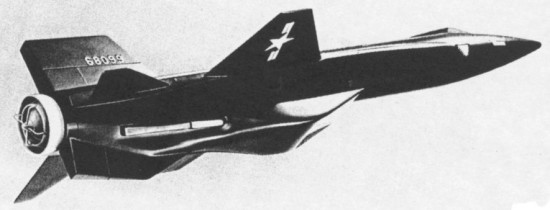

X-15 (23k) Model of the X-15 SERJ concept which would use jet fuel and hydrogen peroxide oxidizer instead of cryogenic fuels

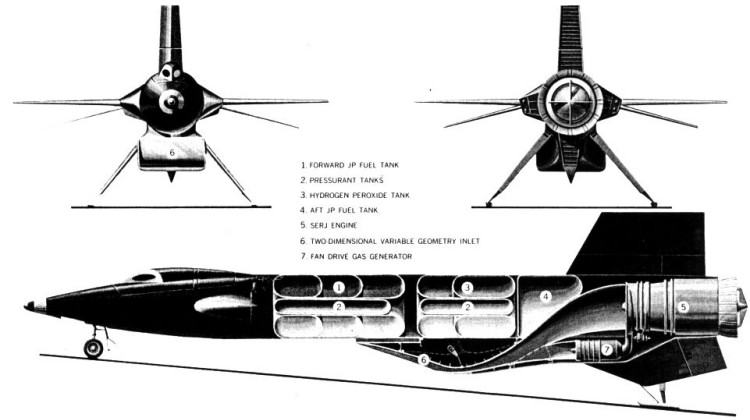

X-15 (52k) Cutaway of the X-15 SERJ showing a small fan drive gas generator used to generate thrust at low speeds
X-15 (62k) Comparison of SERJ-equipped concepts based on the original X-15, delta wing design, and a stretched 2-seat version
X-15 (27k) Advanced X-15 concept study integrating scramjet engines into the ventral fuselage
